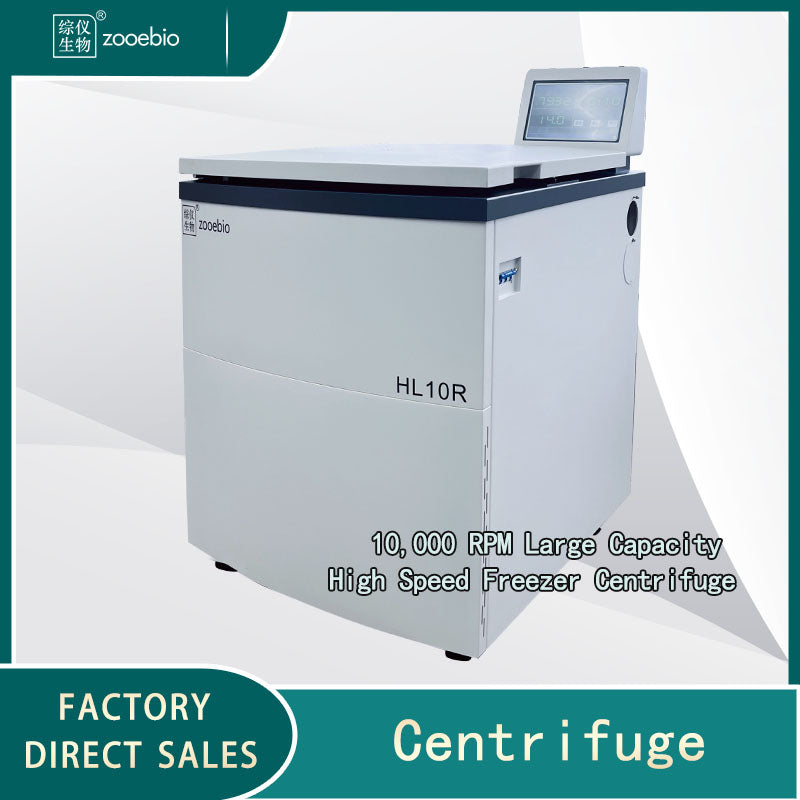

Floor-standing high capacity high speed freezing centrifuge HL10R
Floor-standing high capacity high speed freezing centrifuge HL10R
Product features
Ø Superior performance: microcomputer control; AC frequency conversion motor drive, no carbon powder pollution, extended service life;
Ø Low noise, small vibration; equipped with the latest ultra-light large capacity rotor, efficiency greatly improved;
Ø Simple operation: touch panel, digital display, programmable operation;
Ø Best effect: users can set the speed time at will, automatically calculate the RCF value, refrigeration and heating dual temperature control, centrifugal effect to achieve the best;

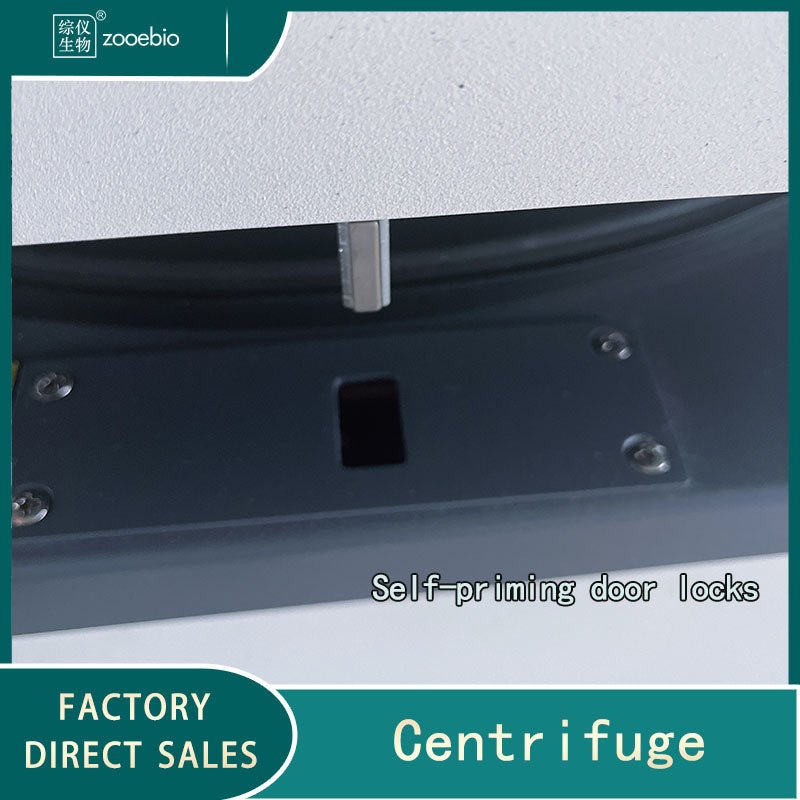

Ø Safe and reliable: there are many kinds of protection such as overspeed, overtemperature, unbalance, door cover self-locking, etc., to ensure the safety of human and machine;
Ø HL10R can be widely used in bioengineering, genetic engineering, biopharmaceutical and other fields.
Technical parameters
|
model |
HL10R (high-speed freezing) |
||
|
max.speed |
10000rpm |
Support power supply |
AC 220±22V 50Hz 64A |
|
max. relative centrifugal force |
18500×g |
power |
6500W |
|
max. capacity |
6×1000ml |
total noise of centrifuge |
< 65dB(A) |
|
Timing range |
1min～99min59sec |
Diameter of centrifugal chamber |
600mm |
|
Temperature setting range |
-20℃～40℃ |
Speed accuracy |
±20rpm/min |
|
Temperature accuracy |
±2.0℃ |
Minimum acceleration/deceleration time |
180s/178s |
|
Size (length x width x height) |
830×730×1200(mm) |
net weight |
256kg |
Rotor parameters
