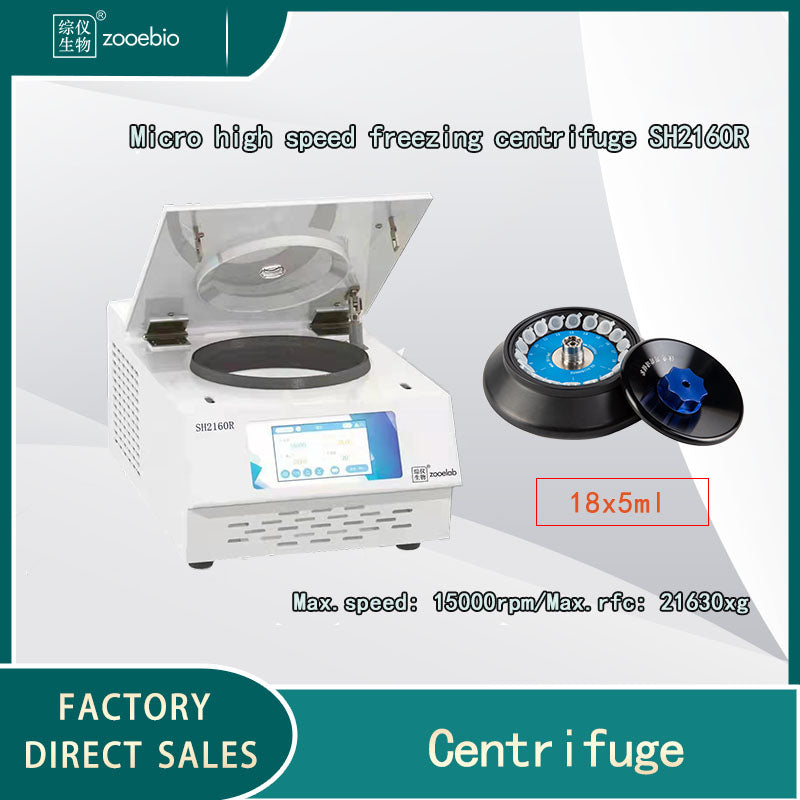

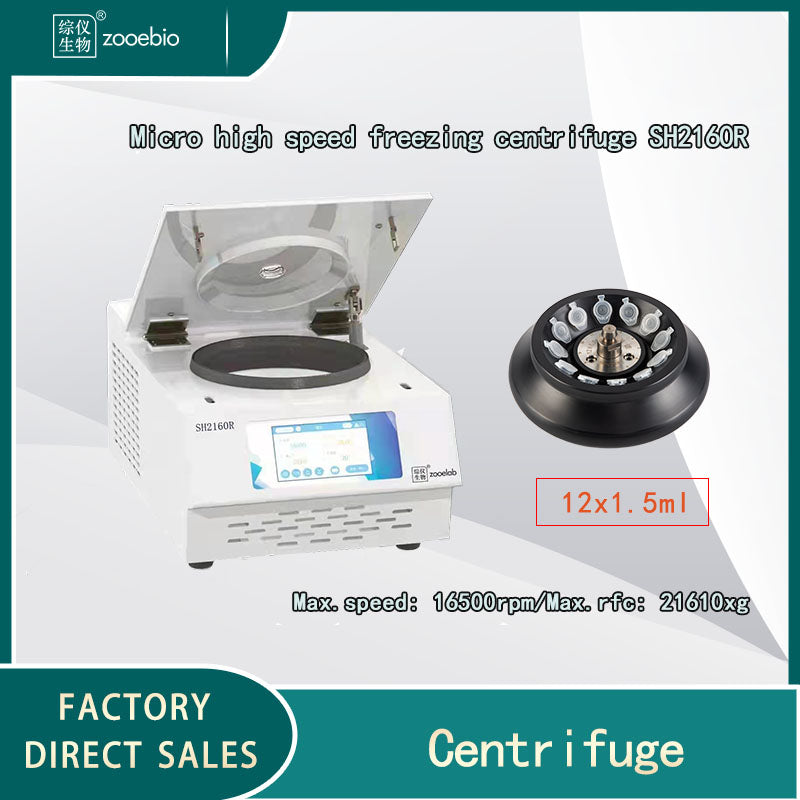

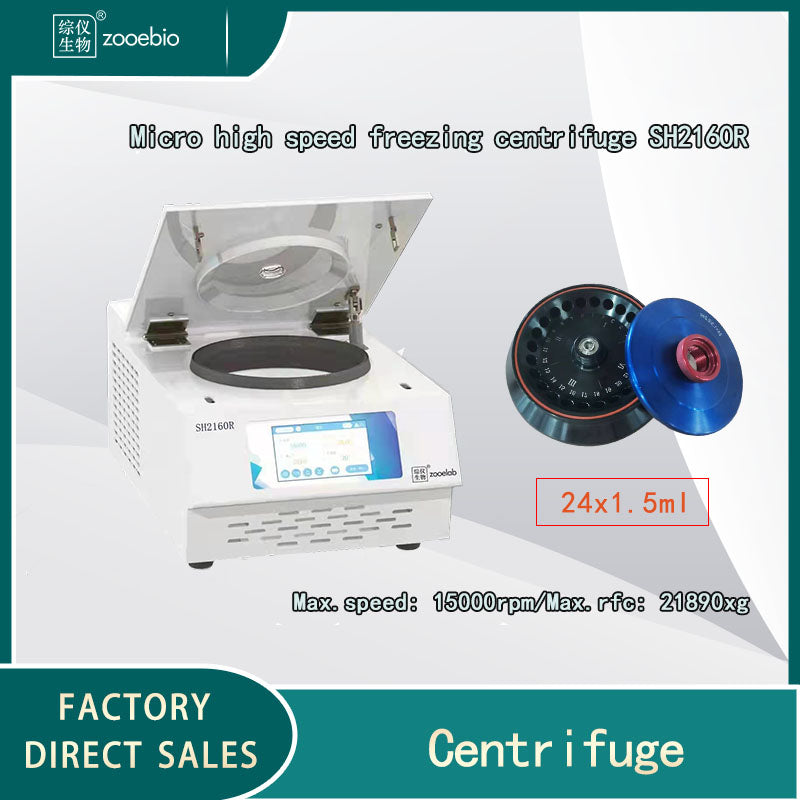

Micro high speed freezing centrifuge SH2160R
Micro high speed freezing centrifuge SH2160R
Product features
Ø SH2160R It is widely used in molecular biology, molecular chemistry and PCR laboratory. It can be equipped with a variety of capacity turntables, with high cost performance.
Ø It has ultra-light head rotation, high intensity, slow heat conduction, strong corrosion resistance and fast lifting speed.
Ø The surface of the machine is coated with fine sand pattern.
Function Introduction
Ø Safety: the whole machine is formed by high strength steel in one press, the rotating head is corrosion resistant to eliminate the risk of explosion, the microcomputer control system and the powerful torque frequency converter motor drive, the lifting speed is faster, the operation is more stable and quiet.
Ø The body is made of high quality steel structure, and the inner cavity of the centrifuge is made of stainless steel for safety and durability.
Ø Linear drive, 10 speed acceleration/deceleration control.
Ø Various centrifugation functions: time difference centrifugation function, gradient centrifugation function, point centrifugation function, timed centrifugation function.
Ø According to the experimental requirements, 10 sets of applications can be stored and called with one button.
Ø Freezing function: using environmentally friendly refrigerant, the chamber temperature can still be stable at 4℃ at the highest speed; fast pre-cooling function can reduce the room temperature from 25℃ to 4℃ within 6 minutes.
Ø Intelligent temperature control system, which can adjust the refrigeration operation time of the equipment when the door cover is opened/closed.
Ø The braking time is controlled by 10 deceleration and acceleration, and the uniform soft braking design is designed to avoid secondary mixing caused by vibration during deceleration.
Ø The 5-inch LCD touch screen can display the setting parameters and running parameters synchronously. It is easy to operate. It has a variety of protection functions such as overspeed, unbalance, door cover protection, overcurrent and rotor fault. Parameters can be changed during operation without stopping the machine.
Technical parameters
|
model |
SH2160R (cryogenic) |
Temperature accuracy |
±1.0℃ |
|
Max. speed |
16500rpm |
mode of operation |
Touch panel |
|
Max. relative centrifugal force |
21890xg |
power |
800W |
|
Max. capacity |
18×5ml |
Machine noise |
≤60dB（A） |
|
Speed accuracy |
±10rpm/min |
Support power supply |
AC 220±22V 50Hz 10A |
|
Timing range |
1s—99min59s/99h59min |
Size (length x width x height) |
520×320×230（mm） |
|
Temperature setting range |
-20℃— 40℃ |
net weight |
35KG |
Rotor parameters
