Mini centrifuge, fast PCR serum separation, high-speed and low-speed handheld centrifuge

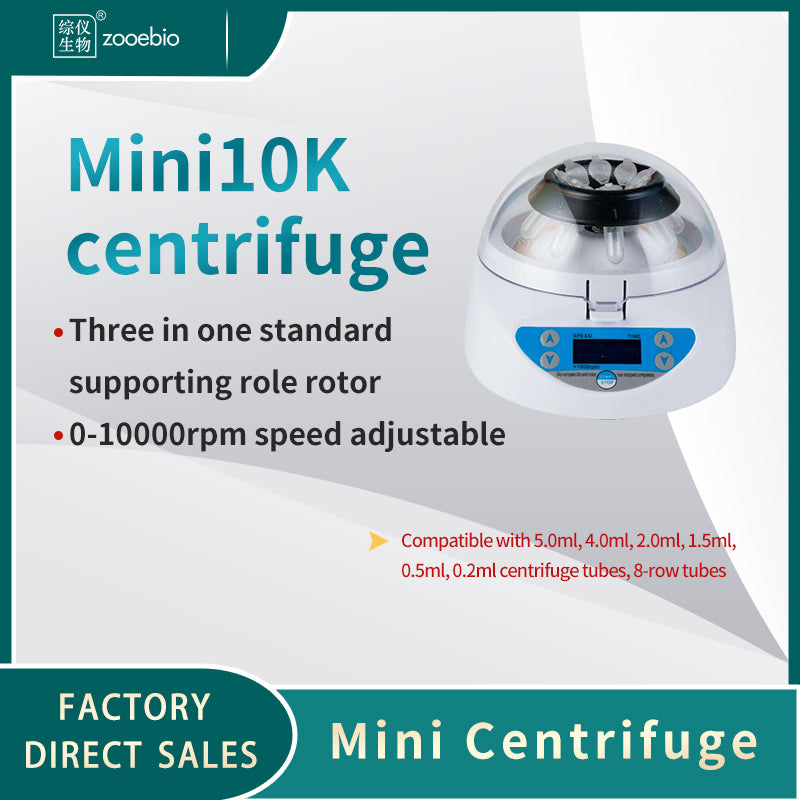

Mini centrifuges Mini4K/6K/7K/10K/12K
Product Introduction
The mini mini centrifuge series has a novel and unique appearance, is flexible and versatile, and is equipped with a variety of centrifuge rotors and a variety of test tube sets, suitable for 5.0ml, 4.0ml, 2.0ml, 1.5ml, 0.5ml, 0.2ml centrifuge tubes and PCR 0.2ml 8-row centrifuge tubes.
It has the function of flip cover switch, which automatically stops when the cover is opened. The adjustable centrifuge has the function of electronic timing and speed adjustment.
Product features
Ø Convenient and efficient 3-in-1 large radius 18-hole rotor or 8-hole high capacity rotor is optional, compatible with 1.5ml, 0.5ml, 0.2ml three centrifuge tubes;
Ø High frequency and wide voltage power supply technology, universal worldwide;
Ø Unique rotor clip design, easy to replace the rotor;
Ø Ultra low noise, smooth operation, using maintenance-free motor, durable, safe and reliable.
Application scope
Ø Serum extraction from whole blood
Ø Extraction of supernatants from various samples
Ø Rapid sedimentation of samples
Ø Microscopic blood cell separation
Ø Microbiological sample processing
Ø PCR laboratory partition centrifugation
Technical parameter
|
model |
Mini10K/12K (adjustable) |
Mini 4K/6K/7K/10K/12K (fixed speed type) |
|
maximum speed |
10000rpm/12000rpm increment 1000rpm |
4000/6000/7000/10000/12000rpm |
|
Maximum relative centrifugal force |
5500xg/7900xg |
900xg/2000xg/2700xg/5500xg/7900xg |
|
source |
85-265V AC 50/60HZ |
|
|
power |
≤30W |
|
|
Drive motor |
DC motor (12VDC) |
|
|
Set the time range |
1-99 minutes |
|
|
sample treatment |
6x2.0ml/1.5ml/0.5ml/0.2ml Three-in-one corner rotor (standard rotor) 8x2.0ml/1.5ml/0.5ml/0.2ml Centrifuge tubes 2x8x0.2ml PCR centrifuge tubes (standard rotor) 4x8x0.2ml Centrifuge and pipette the PCR tubes 4x5ml centrifuge tube and 4x4ml cryopreservation tube Free: 2mL to 0.5ml/0.2ml adapter |
|
|
noise |
≤45db(A) |
|
|
weight |
1.1kg |
|
|
Size (length x width x height) |
180x150x120（mm） |
|
